polypropylene cbb21 led lighting metallized film capacitor pcba

FOB Reference Price:Get Latest Price
$0.01 - $0.50 / Piece | 3000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50000 >50000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CRC
Model Number:
MPR Capacitor
Type:
Polypropylene Film Capacitor
Operating Temperature:
-25~125℃
Rated Voltage:
100/ 250/ 400/ 630 /1000V .DC
Application:
General Purpose, Used in DC and pulse circuit
Package Type:
Through Hole
Product name:
Film Capacitor- MPR Series
Capacitance tolerance:
±5%(J) ±10%(K) ±20%(M)
Terminal:
Lead Wire
Certificate:
ISO14001,ISO9001, IATF16949, RoHS,UL, VDE, CQC
Color:
Red
Material:
Metallized Polypropylene Film
Package:
Cartons
Size:
Custom Size
Life expectancy:
100,000h(Un,hotspot≤70℃)
Capacitance:
0.001~10uF
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Plastic bag, inner carton, foam board, outer carton
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 50000 >50000
Est. Time(days) 15 To be negotiated
Video Description

Free Sample mpp capacitor metallized capacitor 474j 100v CBB21 capacitor 0.47uf

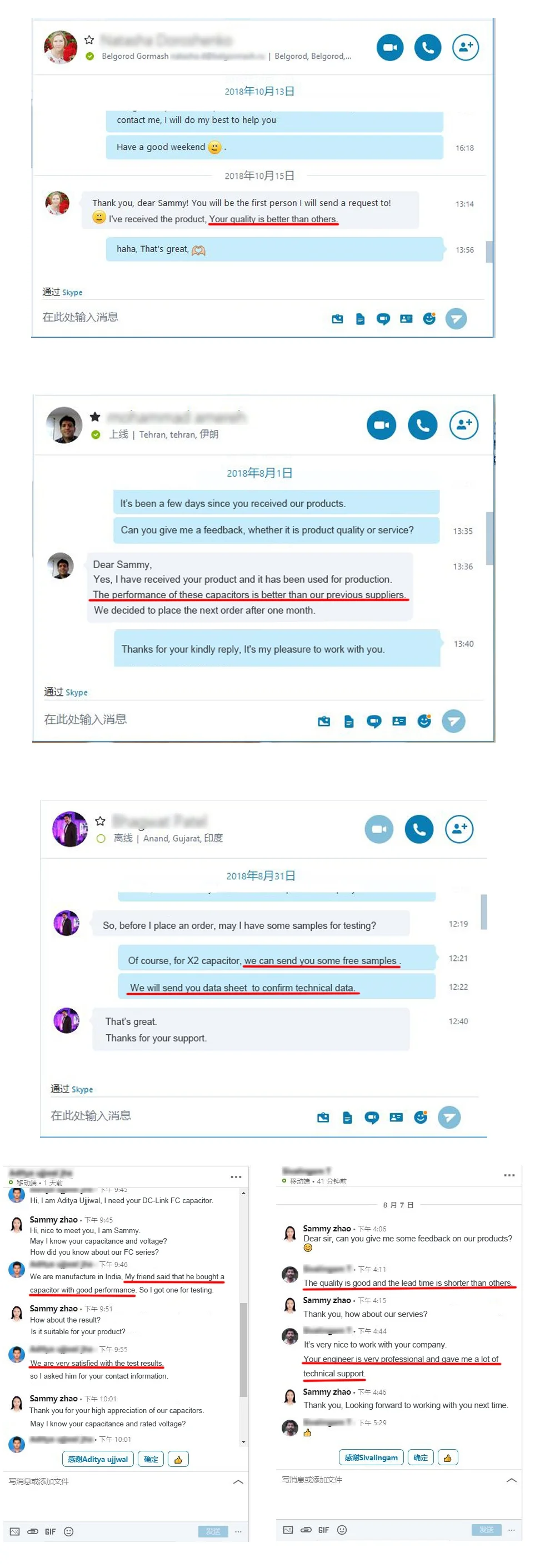

Customer Feedback
feedback all


  Specification data




   Product Name



  Cbb21 Capacitor MPR Series



  Constructions & Materials



  Dielectric: Metallized Polypropylene(PP) Film

  Terminal: Tinned CP wire

  Filling: Flame-retardant Epoxy resin




  Rated Voltage range



  100/ 160/ 250/ 400/ 450/ 520/ 630/ 1000/ 1250/ 1600/ 2000v



  Capacitance range



  0.001uF ~ 20.0 uF



  Capacitance tolerances



  ± 5%(J), ± 10% (K) (1KHz)



  Withstanding voltage



  1.6Ur(5S)



  Dissipation factor



  ≤10×10-4 (20℃;1KHz)



  Insulation Resistance



  Ur>100V, Cr≤ 0.33 uF, R≥15000 mΩ; Cr>0.33 uF, R*Cn≥5000s;    20℃, 100VDC,1min



  Operating temperature range



  -40~105℃(+85℃to +110℃:decreasing factor 1.25% per ℃ for      VR(DC)



  Reference Standard



  GB/10190 (IEC60384-16)



  Application



   1. Used in high frequency, DC, AC and pulse circuits;

    2. Used in situations where high frequency and high current apply;

    3. Used as intermediate circuit capacitors for SMPS, Electronic Ballast, converter       (i.e. DC-Link, PFC).



  Certification



  ISO9001, ISO14001, IATF16946, RoHS, UL, VDE, CQC; 6+utility    model patents





  Detailed Images







polypropylene capacitor.jpg





MPR related products.jpg

CRC product photo

tips



  Certifications










  QA/QC & Production process





      QCQA production process.jpg



 ER PR packing.jpg



588C1D2F0BB62E8ED359A0BAC0996B60







Company Informaiton






company01

company02

Established in 2001, Shenzhen CRC New Energy Co., Ltd is a professional manufacturer of metallized film capacitors with over 18 years of experience. CRC has its manufacturing plant located in Shenzhen, China with convenient transportation access.

As an ISO9001, ISO14001, IATF16949 certified manufacturer, CRC produces a wide range of film capacitors, including:

l  X2 capacitor

l  CBB21 Metallized polypropylene film capacitor

l  CL21 Metallized polyester film capacitor

l  DC-Link capacitor

l  Snubber capacitor

l  Automotive capacitor

l  High voltage pulse capacitor

l  AC-Filter capacitor

l  Resonance circuit capacitor.



We supply to the automotive, alternative energy, industrial and other professional markets, such as new energy car, solar inverter, wind power inverter, LED drivers, power meters, power suppliers, induction heating equipment, welding equipment, home appliances, UPS and SVG, etc.



We serve integrators, distributors and buying offices around the world.



We have exported to Germany, USA, Switzerland, Italy, Spain, Russia, Brazil, Turkey, Japan, South Korea, Thailand and Philippines, etc.



All of us at CRC are looking forward to quoting your needs and doing business with you in the near future.





Advantages





  • 17+ years of professional manufacturing experience in metallized film capacitors



  • Quality is our No.1 priority, a complete set of QC/QA procedures, quality pass rate 99.5%



  • Experienced engineers, strong R&D capability, can customize to meet your special requirements



  • Quick sales response, our professional team will be online 24/5 at your service



  • ISO9001, ISO14001, IATF16949, RoHS, UL, VDE, ENEC, CQC; 6+ utility model patents



  • MOQ 1pcs~5Kpcs; leadtime 2days~4weeks; competitive prices; free samples; any delivery methods you prefer
